SPEC&PRICE

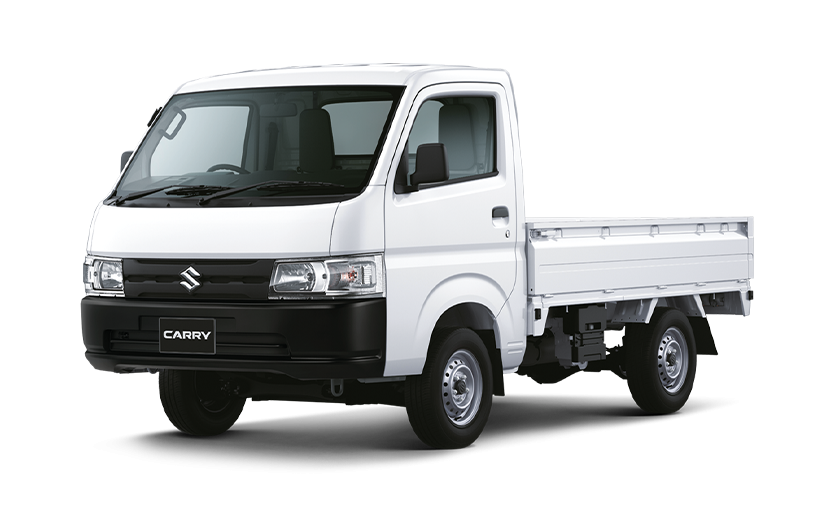

Suzuki CARRY SPEC & PRICE

Suzuki CARRY SPEC & PRICE

MT

395,000

GRADE & PRICE

MT

395,000

GRADE

MT

DIMENSION

Overall length (mm)

4,195

Overall width (mm)

1,765

Overall height (mm)

1,910

Wheelbase (mm)

2,205

Front Tread (mm)

1,465

Rear Tread (mm)

1,460

Cargo bed length (mm)

2,450

Cargo bed width (mm)

1,670

Cargo bed height (mm)

360

Minimum turning radius (m)

4.4

Minimum ground clearance (mm)

160

CAPACITIES

Seating capacity (persons)

2

Fuel tank capacity (litres)

43

Loading capacity including passenger (kg)

945

ENGINE

Engine

K15B

Driven wheel

2WD

Number of cylinders

4

Number of valves

16

Piston displacement (cc)

1,462

Bore x Stroke (mm)

74.0 x 85.0

Compression ratio

10:01

Maximum output (kW/rpm)

71/ 5,600

Fuel distribution

Fuel distribution

TRANSMISSION

Type

5MT

Gear ratio

1st

3.580

2nd

2.095

3rd

1.531

4th

1.000

5th

0.855

Reverse

3.727

Final gear ratio

4.875

CHASSIS

Steering

Rack and pinion

Brakes

Front

Ventilated disc

Rear

Drum brake

Suspension

Front

MacPherson strut with coil spring

Rear

Leaf rigid axle

Tyre size

165/ 80 R13

WEIGHTS

Kerb weight (kg)

1,065

Gross Vehicle Weight (kg.)

2,010

DIMENSION

Overall length (mm)

4,195

Overall width (mm)

1,765

Overall height (mm)

1,910

Wheelbase (mm)

2,205

Front Tread (mm)

1,465

Rear Tread (mm)

1,460

Cargo bed length (mm)

2,450

Cargo bed width (mm)

1,670

Cargo bed height (mm)

360

Minimum turning radius (m)

4.4

Minimum ground clearance (mm)

160

CAPACITIES

Seating capacity (persons)

2

Fuel tank capacity (litres)

43

Loading capacity including passenger (kg)

945

ENGINE

Engine

K15B

Driven wheel

2WD

Number of cylinders

4

Number of valves

16

Piston displacement (cc)

1,462

Bore x Stroke (mm)

74.0 x 85.0

Compression ratio

10:01

Maximum output (kW/rpm)

71/ 5,600

Fuel distribution

Multipoint Injection

TRANSMISSION

Type

5MT

Gear ratio

1st

3.580

2nd

2.095

3rd

1.531

4th

1.000

5th

0.855

Reverse

3.727

Final gear ratio

4.875

CHASSIS

Steering

Rack and pinion

Brakes

Front

Ventilated disc

Rear

Drum brake

Suspension

Front

MacPherson strut with coil spring

Rear

Leaf rigid axle

Tyre size

165/ 80 R13

WEIGHTS

Kerb weight (kg)

1,065

Gross Vehicle Weight (kg.)

2,010
